Product Details
Model
S1800
Drill Hole Diameter (mm)
127-140
Drill Hole Depth (mm)
2700-3000
Splitting Distance (mm)
25
Splitting Force (kn/ton)
53936/5500
Wedge Diameter (mm)
123-130
Wedge Length (mm)
1958
Length of Splitter (mm)
4500
Cylinder Lenght (mm)
2550
Hydraulic Pressure min/max (bar)
300/500
Weight (Kg)
1750
WORKING OF S1800:
- Insert wedge set into a pre-drilled hole (126 - 133 mm diameter, 2700 mm deep).
- S1800 cylinder pushes center wedge between two counter wedges.
- Applies a massive 5500-ton splitting force on the side wall of the rock hole.
- Results in efficient rock splitting with no noise or vibration.
- Splitting operation time for a single hole: 60 seconds.
Output:
S1800 boasts an impressive output of 400 to 500 m3 per day.
Mounted on excavator from 20 ton to 40 ton
Openface to distance 2.5ft & height 2 mtr

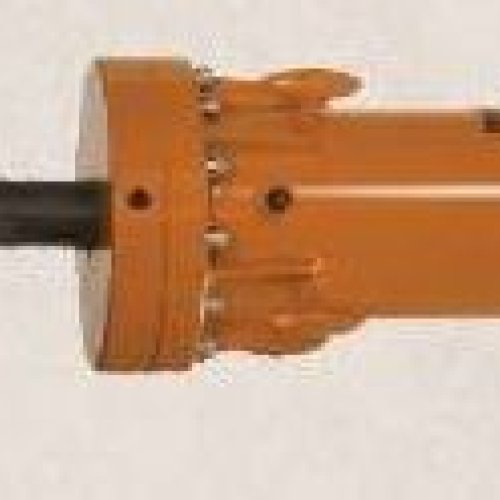

Looking for "Hydraulic Rock Splitter S1800" ?
