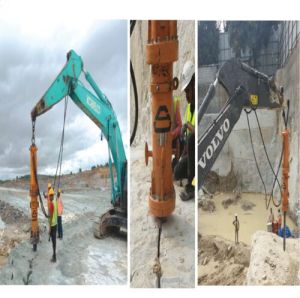

Hydraulic Rock Splitter

SOLID STRENGTH, SWIFT SPLITTING

Experience the Excellence of Robust Aluminum and Special Steel

Wedge set inserted in pre-drilled hole of 108-118 mm diameter and 1800 mm deep. S1200 cylinder pushes centre wedge between two counter wedges. Which applies a 2500 ton splitting force on side wall of rock hole, resulting in splitting of rock without any noise and vibration. The output of the S1200 will be 250 to 300 m³ per day.

WORKING OF S-1200:

• Insert wedge set into a pre-drilled hole (108 - 118 mm diameter, 1800 mm deep).
• S1200 cylinder pushes center wedge between twocounter wedges.
• Applies a 2500 ton splitting force on the side wall of the rock hole.
• Results in rock splitting without noise or vibration.
• Splitting operation time for a single hole: 60 seconds.

TO OBTAIN MAXIMUM OUTPUT FOLLOWING STEPS RECOMMENDED:

Step 1: Insert half of the total length of wedge and operate the splitter.

Step 2: Insert about 3/4th of the total length of wedge to split again.

Step 3: Finally insert the total length of wedge and split to complete.

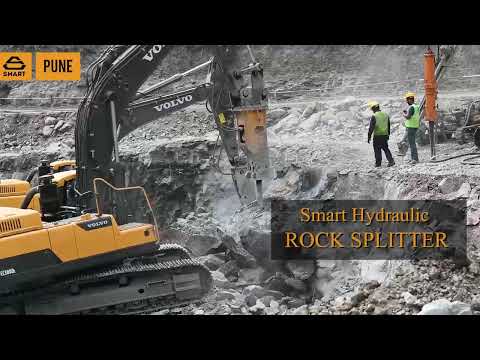

The S1200 is ideal for open trenching, foundation blocks, and tunnel excavations. It can be mounted on a excavator and is suitable for applications such as open pit excavation, shafts, micro-tunneling, building construction and mining.
