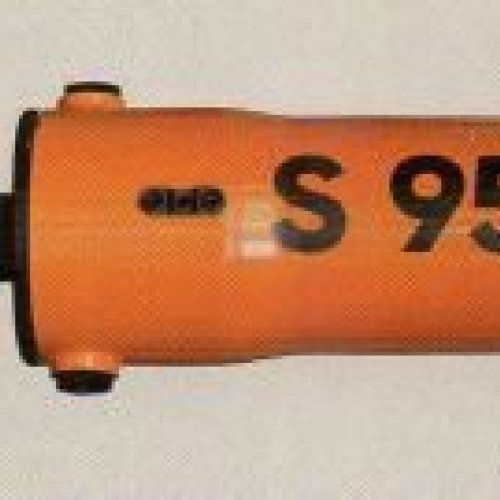

Hydraulic Rock Splitter S950

Launching new hydraulic rock splitter model S950 larger than S750 and little bit smaller than S1200. Mainly for building constructions and trenching work.

Working of S950: Wedge set inserted in pre-drilled hole of 76 mm diameter & 1400-1600mm deep. S950 cylinder pushes centre wedge between two counter wedges. Which applies a 3000-3500 ton splitting force on side wall of rock hole, resulting in splitting of rock without any noise and vibration. The splitting opration time for a single hole is 60 secs.

To obtain maximum output following steps recommended:

Step 1: Instert half of the total length of wedge and operate the splitter.

Step 2: Insert about 3/4^th of the total length of wedge to split again.

Step 3: Finally insert the total length of wedge and split to complete.

The S950 is ideal for open trenching, foundation blocks, and tunnel excavations. It can be mounted on a backhoe loader and is suitable for applications such as open pit excavation, shafts, micro-tunneling, building construction, and mining, particularly in areas with limited space.
